3 Phase Prepaid Consumption Lcd Wattmeter

Gomelong is a professional manufactures of 3 Phase prepaid consumption lcd wattmeter. Our professional expertise in manufacturing 3 Phase prepaid consumption lcd wattmeter has been honed over the past 10+ years. 3 Phase prepaid consumption lcd wattmeter is a kind of active energy meter which purchase electricity by IC card, electric energy measuring, load control and using electricity management.Phase prepaid consumption lcd wattmeter has LED monitors shows power.

Model:DTSY5558

Send Inquiry

Product Description

3 Phase Prepaid Consumption Lcd Wattmeter

3 Phase prepaid consumption lcd wattmeter is a kind of active energy meter which purchase electricity by IC card, electric energy measuring, load control and using electricity management. 3 Phase prepaid consumption lcd wattmeter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. 3 Phase prepaid consumption lcd wattmeter can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, used for installed in meter box indoor or outdoor. This meter has LED monitors shows power. 3 Phase prepaid consumption lcd wattmeter has following features: Good reliability, light weight, specious nice appearance, convenient installation, etc.

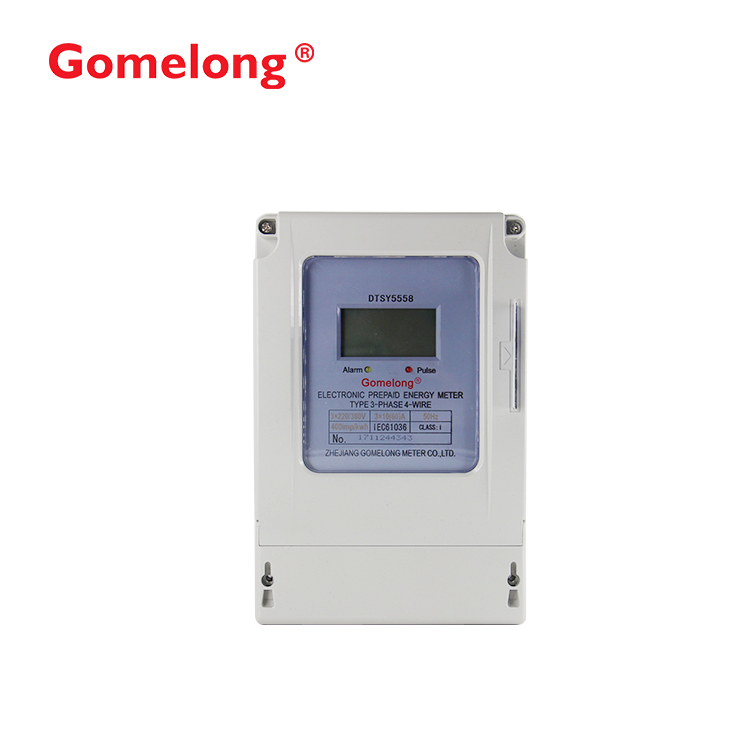

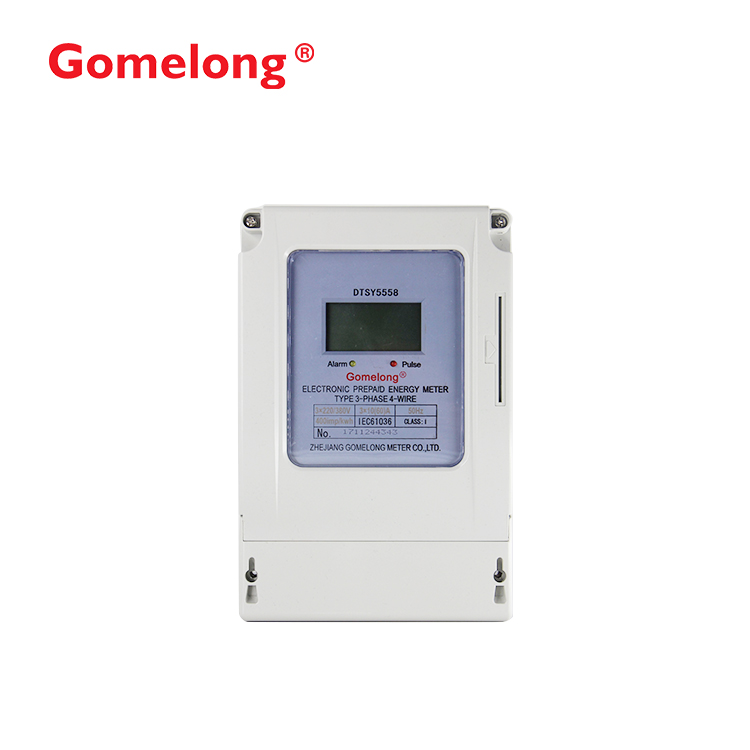

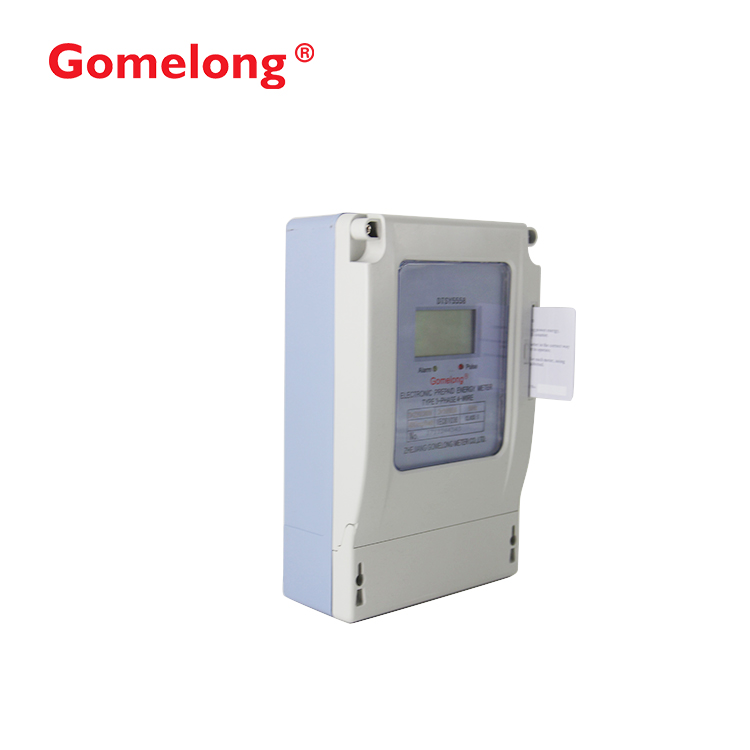

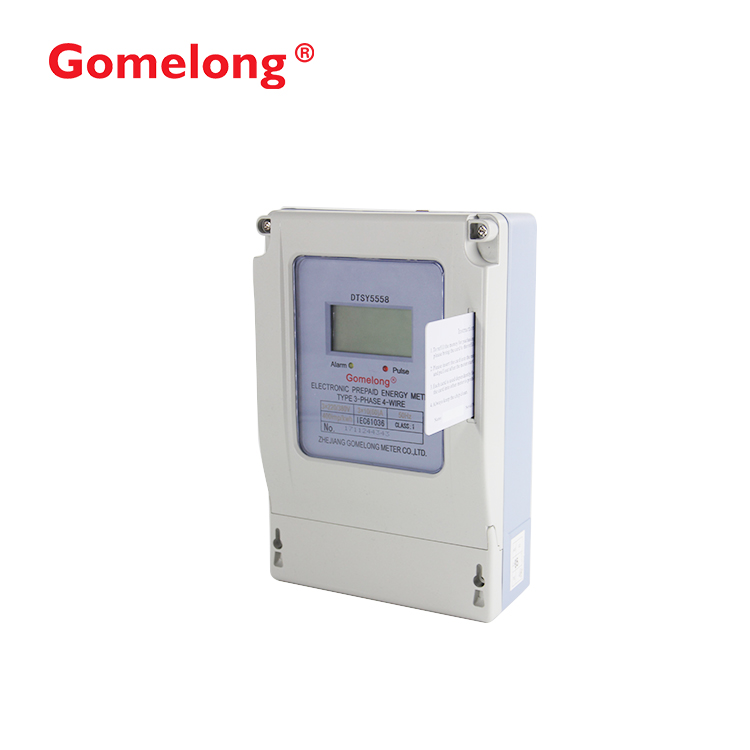

3 Phase Prepaid Consumption Lcd Wattmeter details

3 Phase Prepaid Consumption Lcd Wattmeter Feature


• Payment use ic card prepaid automatic power-off when low credit.

• Power–off alarm when electricity shortage, remind users to buy electricity timely

• Register display the total power consumption

• Overload alarm



Technical Parameters of 3 Phase Prepaid Consumption Lcd Wattmeter


Specification

DDSY5558

DTSY5558

Accuracy

Active

Class1.0

Class1.0

Reactive



Optional

Voltage

Rated

110/120/220/230/240V

3x57.7/100V,3x220/380V

3x230/400V,3x240/415V

Range

0.9Un~1.1Un

0.9Un~1.1Un

Limit

0.8Un~1.2Un

0.8Un~1.2Un

Frequency



50/60Hz

50/60Hz

Current

Range

1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A

3x1.5(6), 3x 5(30), 3x 10(50),

3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A

Starting Current



0.4%Ib

0.4%Ib

Constant

Active

1600imp/kWh

400imp/kWh

Reactive

\

\

Display

Type

LCD

Register

Digit

6+1

6+1

Power Consumption

Voltage Circuit

≤0.8W,10VA

≤0.8W,10VA

Current Circuit

≤4VA

≤4VA

Communication

Interface

Optical/Infrared/RS485 (Optional)

Optical/Infrared/RS485 (Optional)

Protocol

MODBUS,DLT/645,IEC1107

MODBUS,DLT/645,IEC1107

Temperature

Working Temperature

-45℃~+55℃

-45℃~+55℃

Storage Temperature

-40℃~+70℃

-40℃~+70℃

Humidity



≤90%

≤90

Protection



IP54

IP54

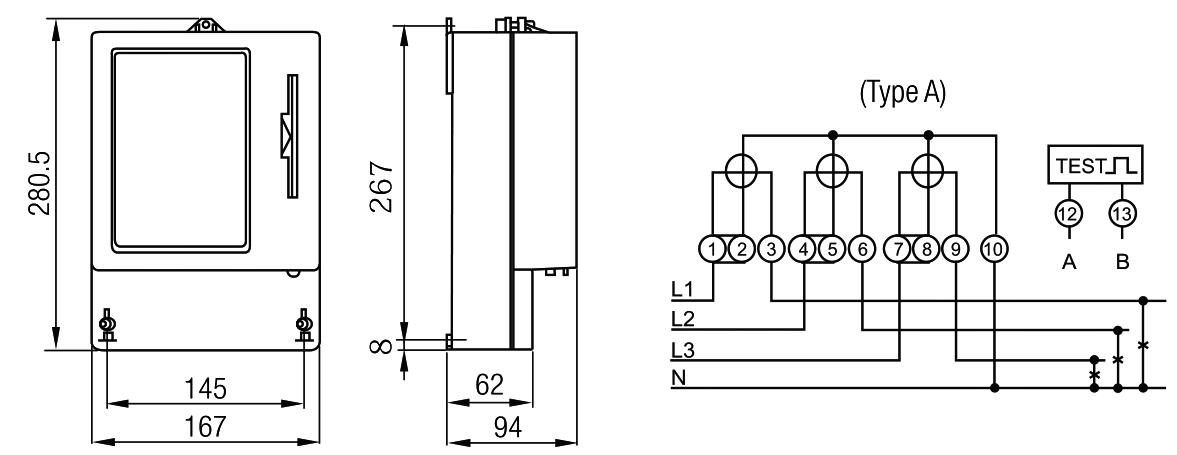

3 Phase Prepaid Consumption Lcd Wattmeter size
