Single Phase Two Wire Energy Meters

Gomelong is a professional manufactures of Single Phase Two Wire Energy Meters. Our professional expertise in manufacturing Single Phase Two Wire Energy Meters has been honed over the past 10+ years. Single phase two wire energy meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21. Single phase two wire energy meter has bidirectional measurement, reverse energy calculated into forward.

Model:H-Short tail cover

Send Inquiry

Product Description

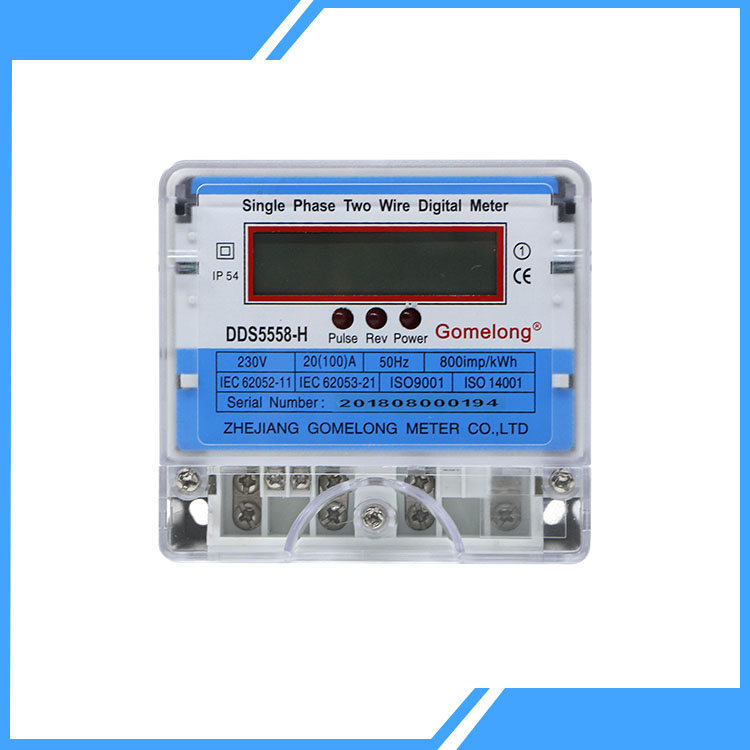

2020 New DDS5558 Single Phase Two Wire Energy Meters

2020 New DDS5558 Single Phase Two Wire Energy Meter details

2020 New DDS5558 Single Phase Two Wire Energy Meter

2020 New DDS5558 Single Phase Two Wire Energy Meter

Application of 2020 New DDS5558 Single Phase Two Wire Energy Meters


2020 New DDS5558 Single Phase Two Wire Energy Meters is a kind of new style single phase two wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. 2020 New DDS5558 single phase two wire energy meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.



Features of 2020 New DDS5558 Single Phase Two Wire Energy Meters


1. Bidirectional measurement, Reverse energy calculated into forward

2. Indication: Pulse, power, reverse current

3.Full PC


Technical Parameters of 2020 New DDS5558 Single Phase Two Wire Energy Meters



Specification

DDS5558

Accuracy

Active

Class1.0

Reactive



Voltage

Rated

110/120/220/230/240V

Range

0.9Un~1.1Un

Limit

0.8Un~1.2Un

Frequency



50/60Hz

Current

Range

5(20)A ,5(25)A ,5(30)A,5(32)A

Starting Current



0.4%Ib

Constant

Active

2000imp/kWh

Reactive

\

Display

Type

LCD

Digit

6+1

Power Consumption

Voltage Circuit

≤0.8W,10VA

Current Circuit

≤4VA

Communication

Interface

\

Protocol



Temperature

Working Temperature

-45℃~+55℃

Storage Temperature

-40℃~+70℃

Humidity



≤90%

Protection



IP54



Dimension And Wiring Digram of 2020 New DDS5558 Single Phase Two Wire Energy Meters


2020 New DDS5558 Single Phase Two Wire Energy Meter size
