Gomelong is a professional manufactures of Programmable smart PLC energy meter. Our professional expertise in manufacturing Programmable smart PLC energy meter has been honed over the past 10+ years. Programmable smart PLC energy meter,12 months Readable by RS485, and 3 month display on screen.Programmable smart PLC energy meter can accurately and directly measure50Hz or 60Hz active energy consumption from three phase four wire AC electricity net.

Send Inquiry

Product Description

Programmable Smart PLC Energy Meter

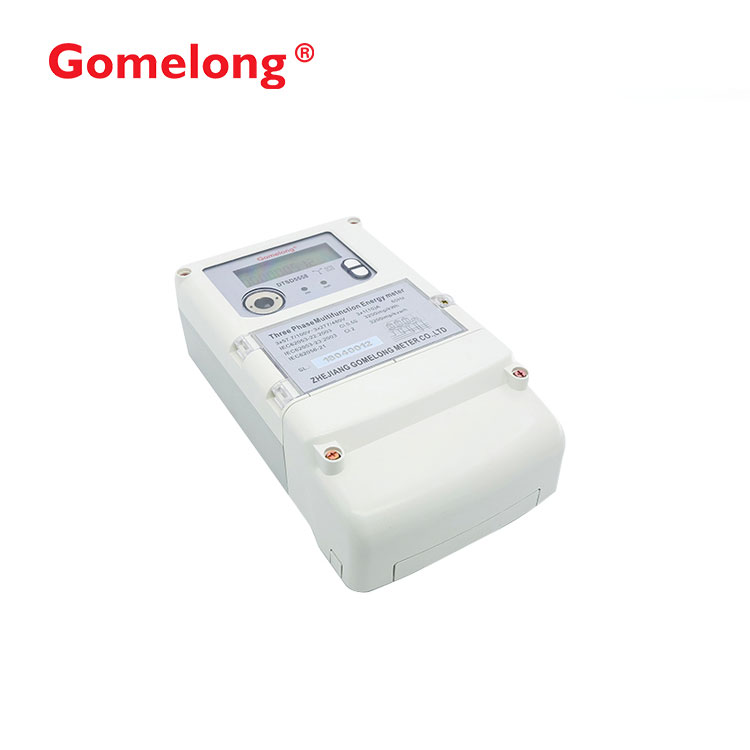

Programmable smart PLC energy meter is a kind of new style three phase four wire multifunction energy meter. Programmable smart PLC energy meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21 and class1 three phase reactive energy meter in international standard IEC 62053-23. Programmable smart PLC energy meter can accurately and directly measure50Hz or 60Hz active energy consumption from three phase four wire AC electricity net.Programmable smart PLC energy meter has LCD monitors shows the active energy power consumption, and there are far infrared and RS485 communication module in it. Following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Programmable Smart PLC Energy Meter details



Features of Programmable Smart PLC Energy Meter


1. Measurement of Import/Export active energy, current energy balance, Instant  voltage/current/power

2. PLC, Rs485, Infrared interface

3. Event record: Cover open detection, Reverse current, Fraud



Multi Tariff Energy Meter of Programmable Smart PLC Energy Meter


1. History: 12 months Readable by RS485, and 3 month display on screen

2. Real time clock and date, able to resetting via RS485 wire or Infrared by HHU

3. Time-of-use, 4 Tariff, 8 Time Zone, 12 Segments

4. Battery: It is equipped with build-in lithium battery, which could be use for at least 10years.

Multi Function have all function of Multi tariff meter, Extra reactive energy consumption and power



Technical Parameters of Programmable Smart PLC Energy Meter


Specification

DTS5558L

DTS5558

Accuracy

Active

Class1.0

Class1.0

Reactive

Optional

Optional

Voltage

Rated

3x57.7/100V,3x220/380V

3x230/400V,3x240/415V

3x57.7/100V,3x220/380V

3x230/400V,3x240/415V

Range

0.9Un~1.1Un

0.9Un~1.1Un

Limit

0.8Un~1.2Un

0.8Un~1.2Un

Frequency



50/60Hz

50/60Hz

Current

Range

1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A

3x1.5(6), 3x 5(30), 3x 10(50),

3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A

Starting Current



0.4%Ib

0.4%Ib

Constant

Active

1600imp/kWh

1600imp/kWh

Reactive

\

\

Display

Type

LCD

Register

Digit

6+1

6+1

Power Consumption

Voltage Circuit

≤0.8W,10VA

≤0.8W,10VA

Current Circuit

≤4VA

≤4VA

Communication

Interface

Optical/Infrared/RS485 (Optional)

Optical/Infrared/RS485 (Optional)

Protocol

MODBUS,DLT/645,IEC1107

MODBUS,DLT/645,IEC1107

Temperature

Working Temperature

-45℃~+55℃

-45℃~+55℃

Storage Temperature

-40℃~+70℃

-40℃~+70℃

Humidity



≤90%

≤90%

Protection



IP54

IP54

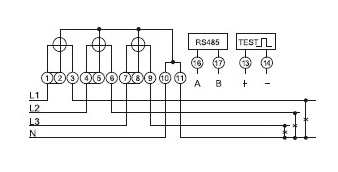

Dimension And Wiring Diagram of Programmable Smart PLC Energy Meter


Programmable Smart PLC Energy Meter

                             Terminal note

                               Terminal note

 1                      Inlet L1phase line

 10                        Inlet neutral line

 3                      Outgoing L1 phase

 11                        Outgoing neutral line

 4                      Inlet L2phase



 6                      Outgoing L2 phase

 16 and 17             Port of RS485 data communication

 7                      Inlet l3 phase



9                      Outgoing L3 phase

 13 and 14             Port of pulse output passive closed
