Single Phase Kilowatt-hour Meter

Gomelong is a professional manufactures of Single Phase Kilowatt-hour Meter. Our professional expertise in manufacturing Single Phase Kilowatt-hour Meter has been honed over the past 10+ years. Single Phase Kilowatt-hour Meter is a kind of new style single phase two wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. Customize single phase energy meter with optical completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.

Send Inquiry

Product Description

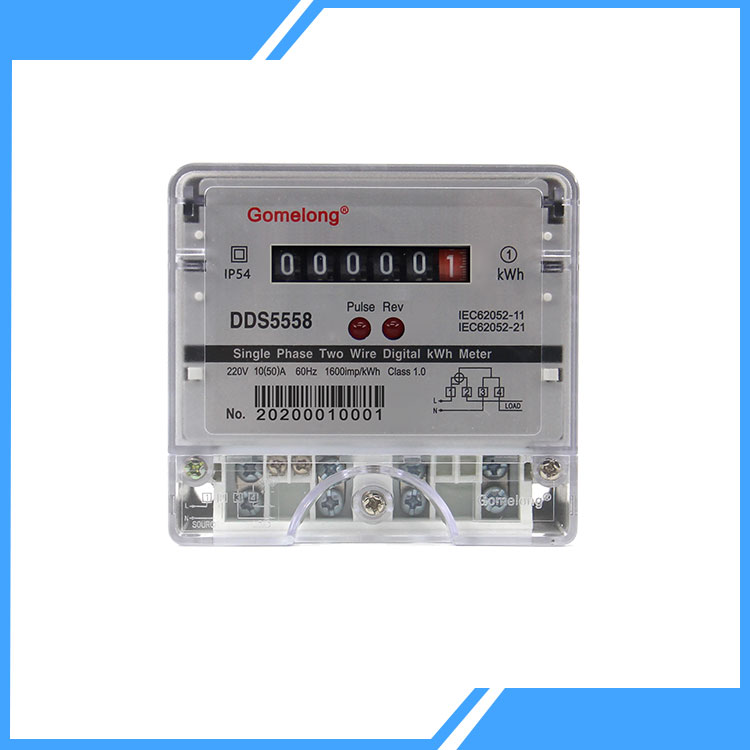

The factory produces 1P single-phase register kilowatt-hour watt-hour meters

Application of Single Phase Kilowatt-hour Meter


Customize single phase energy meter with optical is a kind of new style single phase two wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. Customize single phase energy meter with optical completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.



Features of Single Phase Kilowatt-hour Meter


1. Bidirectional measurement, Reverse energy calculated into forward

2. Indication: Pulse, power, reverse current

3.Full PC


Technical Parameters of Single Phase Kilowatt-hour Meter



Specification

DDS5558

Accuracy

Active

Class1.0

Reactive



Voltage

Rated

110/120/220/230/240V

Range

0.9Un~1.1Un

Limit

0.8Un~1.2Un

Frequency



50/60Hz

Current

Range

5(20)A ,5(25)A ,5(30)A,5(32)A

Starting Current



0.4%Ib

Constant

Active

2000imp/kWh

Reactive

\

Display

Type

LCD

Digit

6+1

Power Consumption

Voltage Circuit

≤0.8W,10VA

Current Circuit

≤4VA

Communication

Interface

\

Protocol



Temperature

Working Temperature

-45℃~+55℃

Storage Temperature

-40℃~+70℃

Humidity



≤90%

Protection



IP54



Dimension And Wiring Digram of Single Phase Kilowatt-hour Meter


We have launched a new model 2018, Type DDS5558-H we call it H type ,  means "High Quality" and " Hot Selling" . It's a single Phase digital smart design model. Already we  have shipped to Colombia, Peru, Vietnam, Cambodia and Bangladesh. Market response very good. Also samples and orders to Chile, Afghanistan are under processing. Customers and end users  like the new design very much and we are spreading this model to many other countries.
Technical features:
Voltage: 120V, 127V,  220V, 230V, 240V,  120/240V
Amp:   3(60)A, 5(60)A, 10(50)A, 10(60)A, 5(80)A, 5(100)A, 10(100)A,
Display:  LCD 6+2
Following Standarded: IEC62052-11, IEC62053-21
Functions for option:
Silver Function: basic kWh, Reverse energy
Gold Function: kWh, MD, V, A, PF, Backlight ,battery backup/super capacitor , tamper proof,Neutral/Phase missing.
Diamond Function: kWh, MD, V, A, PF, backlight,battery backup, Neutral/Phase missing. Tariff, Optical/RS485.
All the meters has 3years warranty.
If you need more information about this model or our other products, please feel free to contact with us.
