Gomelong is a professional manufactures of Din rail type electric bi-directional energy meter. Our professional expertise in manufacturing Din rail type electric bi-directional energy meter has been honed over the past 10+ years. Din rail type electric bi-directional energy meter adopts the latest oversea electric energy special integration circuit, greatly improved dynamic working range of Mete.To make the ability of actual overload up to over 10 times.Din rail type electric bi-directional energy meter have good mistake linearity in the range of 5%Ib-lmax.

Send Inquiry

Product Description

Din Rail Type Electric Bi-directional Energy Meter

Application of Din Rail Type Electric Bi-directional Energy Meter


Din rail type electric bi-directional energy meter is a kind of new style single phase two wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. Din rail type electric bi-directional energy meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.



Features of Din Rail Type Electric Bi-directional Energy Meter


- Measure active electric energy, do not need calibrate for long-term operation;

- Adopt the special chip of measurement ADE7755;

- Adopt the latest oversea electric energy special integration circuit, greatly improved dynamic working range of Mete; to make the ability of actual overload up to over 10 times.

- Have good mistake linearity in the range of 5%Ib-lmax;

- Adopt high reliability and long life electronic components, so the Meter assume feature of high reliability and long life.



Technical Parameters of Din Rail Type Electric Bi-directional Energy Meter


Specification

DDS5558-4p

Accuracy

Active

Class1.0

Reactive



Voltage

Rated

110/120/220/230/240V

Range

0.9Un~1.1Un

Limit

0.8Un~1.2Un

Frequency



50/60Hz

Current

Range

5(20)A ,5(25)A ,5(30)A,5(32)A

Starting Current



0.4%Ib

Constant

Active

2000imp/kWh

Reactive

\

Display

Type

LCD

Digit

6+1

Power Consumption

Voltage Circuit

≤0.8W,10VA

Current Circuit

≤4VA

Communication

Interface

Optical/Infrared/RS485 (Optional)

Protocol

MODBUS,DLT/645,IEC1107

Temperature

Working Temperature

-45℃~+55℃

Storage Temperature

-40℃~+70℃

Humidity



≤90%

Protection



IP54

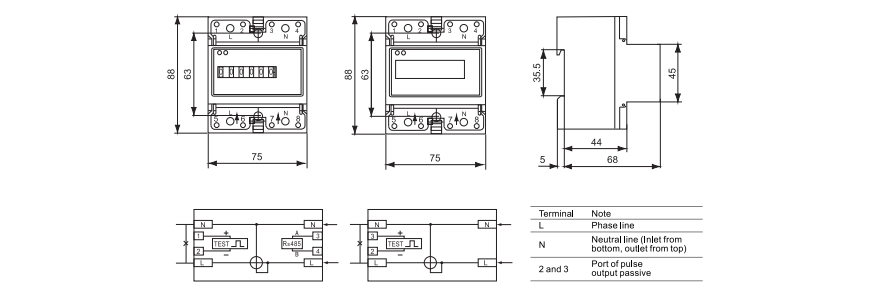

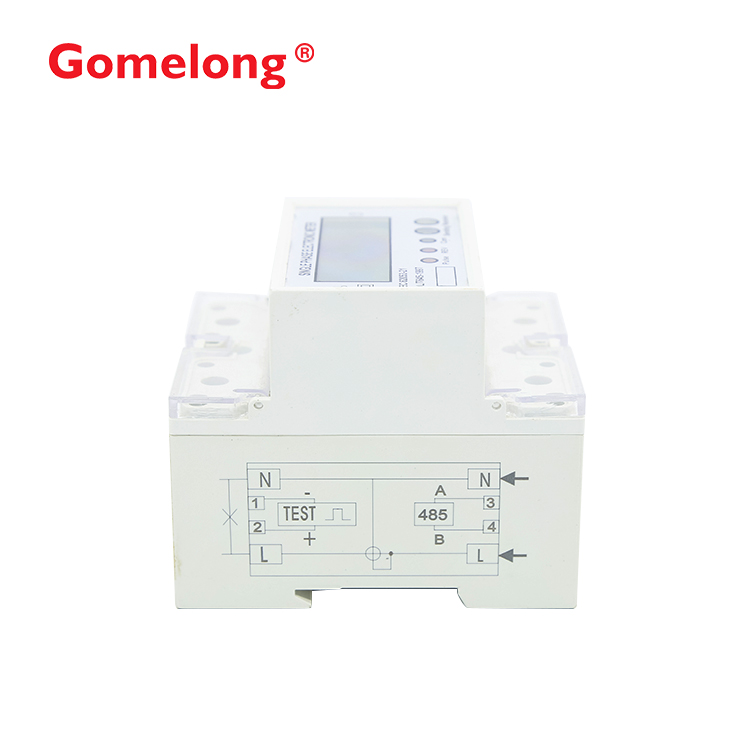

Dimension And Wiring Diagram of Din Rail Type Electric Bi-directional Energy Meter

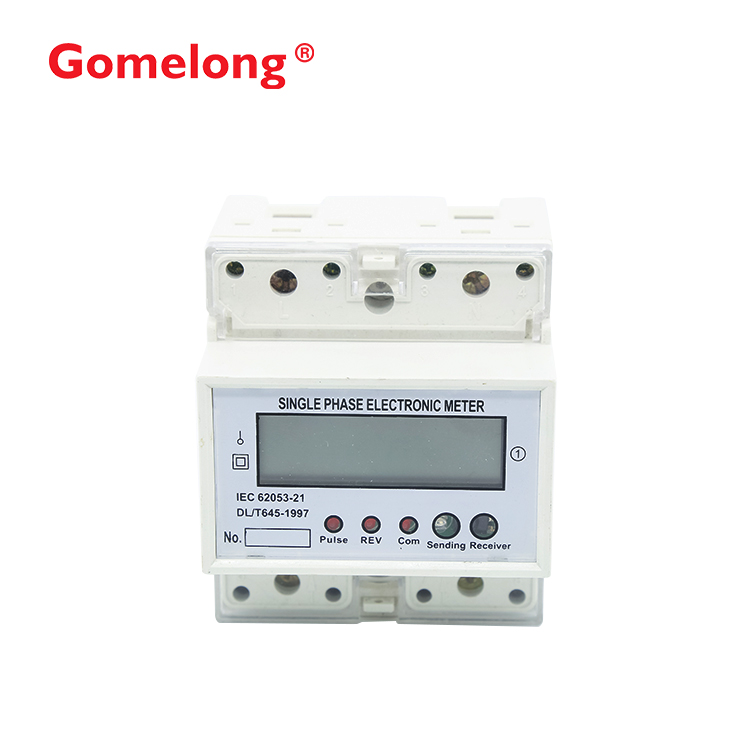

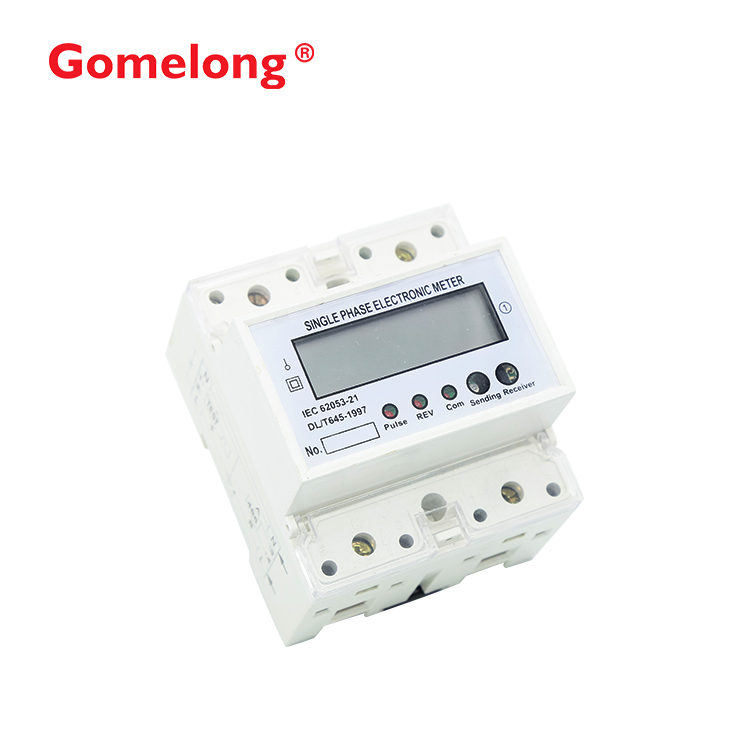

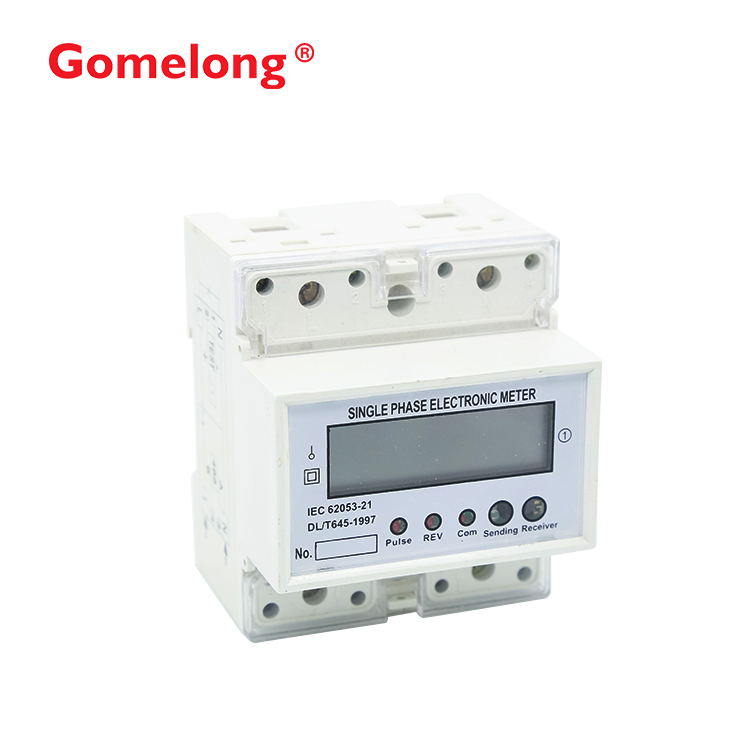

Din Rail Type Electric Bi-directional Energy Meter details

Optical function of Din Rail Type Electric Bi-directional Energy Meter



OPTIOANL FUNCTION IN DISPLAY AND READING: kWh, V, A, P, F, PF,

OPTIONAL FUNCTION IN COMMUNICATION: MODBUS RTU

OPTIONAL FUNCTION FOR REMOTE ELECTRIC METER STOP ( POWER ON AND OFF )



Packing List of Din Rail Type Electric Bi-directional Energy Meter


No.

Quantity/CTN

Size

Weight

1 modular

120pcs

33x23x30cm

10.5KG

2 modular

80pcs

46x23.5x37.5cm

13.5kg

4 modular

40pcs

50x41x18cm

13.5kg

7 modular

30pcs

40x48x18cm

13.5kg
