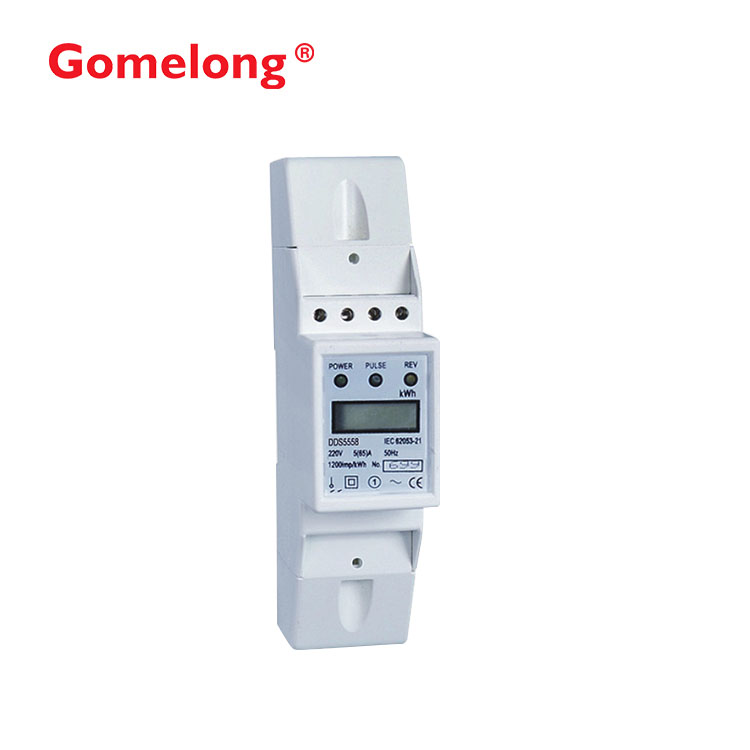

Single Phase 2Wire Din Rail Electric Meter 2P

Gomelong is a professional manufactures of Single Phase 2Wire Din Rail Electric Meter. Our professional expertise in manufacturing Single Phase 2Wire Din Rail Electric Meter has been honed over the past 10+ years. Single Phase 2Wire Din Rail Electric Meter 2P can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. Single Phase 2Wire Din Rail Electric Meter 2P has white backlight source eight digits LCD monitors shows the active energy power consumption.

Send Inquiry

Product Description

Single Phase 2Wire Din Rail Electric Meter 2P

Application of Single Phase 2Wire Din Rail Electric Meter 2P


Single Phase 2 Wire Din Rail Electric Meter 2P is a kind of new style single phase two wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. Single Phase 2 Wire Din Rail Electric Meter 2P has minimum size, and also a new single phase two wire active energy meter. Single Phase 2 Wire Din Rail Electric Meter 2P has already passed the test of the international authority CE. Completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. Single Phase 2 Wire Din Rail Electric Meter 2P can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. Single Phase 2 Wire Din Rail Electric Meter 2P has white backlight source eight digits LCD monitors shows the active energy power consumption. Following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.


Features of Single Phase 2Wire Din Rail Electric Meter 2P


•Bi-directional total active energy measurement

•25mm standard DIN rail installation, complying with standard DIN En50022.

•Single pole width (Modules17.5mm), complying with standard DIN43880.

• Small modular size, DIN rail mounted.

• Easy installation to distribution boards, load center, miniature & etc. By identifying where energy  is being used.



Technical Parameters of Single Phase 2Wire Din Rail Electric Meter 2P


Specification

DDS5558-2P

Accuracy

Active

Class1.0

Reactive



Voltage

Rated

110/120/220/230/240V

Range

0.9Un~1.1Un

Limit

0.8Un~1.2Un

Frequency



50/60Hz

Current

Range

5(20)A ,5(25)A ,5(30)A,5(32)A

Starting Current



0.4%Ib

Constant

Active

2000imp/kWh

Reactive

\

Display

Type

LCD

Digit

6+1

Power Consumption

Voltage Circuit

≤0.8W,10VA

Current Circuit

≤4VA

Communication



\

Temperature

Working Temperature

-45℃~+55℃

Storage Temperature

-40℃~+70℃

Humidity



≤90%

Protection



IP54

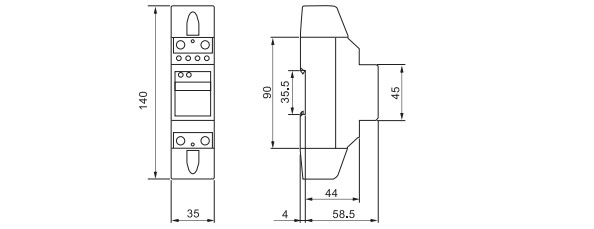

Dimension And Wiring Diagram of Single Phase 2Wire Din Rail Electric Meter 2P


Single Phase 2Wire Din Rail Electric Meter 2P
