Three Phase Digital Voltage Bidirectional Electric Meters

Gomelong is a professional manufactures of Three phase digital voltage bidirectional electric meters. Our professional expertise in manufacturing Three phase digital voltage bidirectional electric meters has been honed over the past 10+ years. Three Phase Digital Voltage Bidirectional Electric Meters are a kind of new style three phase four wire multifunction energy meter.The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21 and class1 three phase reactive energy meter in international standard IEC 62053-23.

Send Inquiry

Product Description

Three phase digital voltage bidirectional electric meters

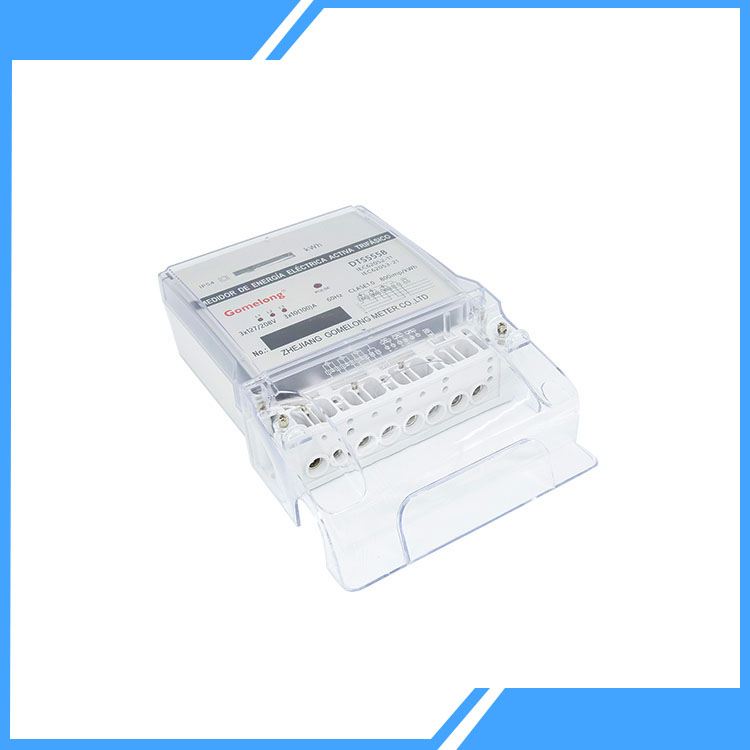

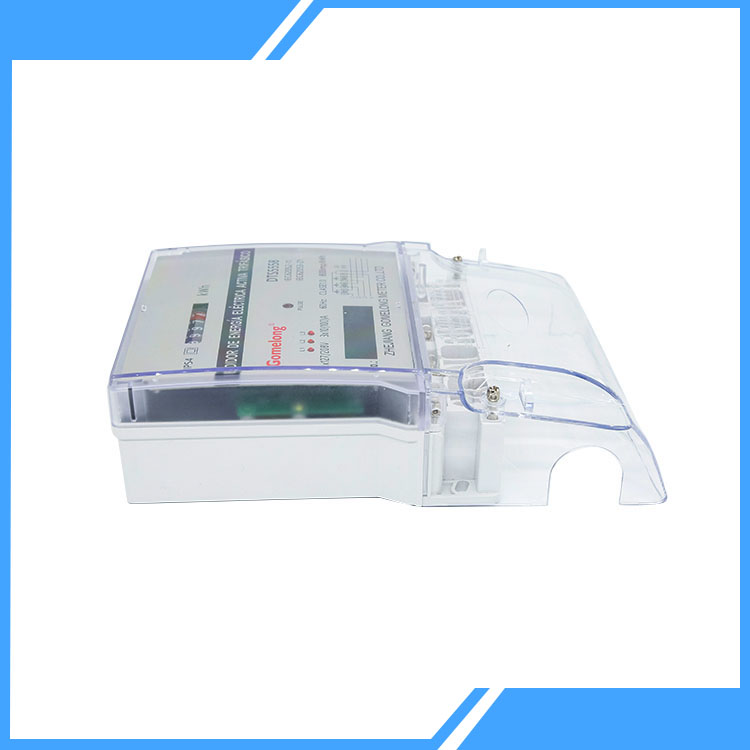

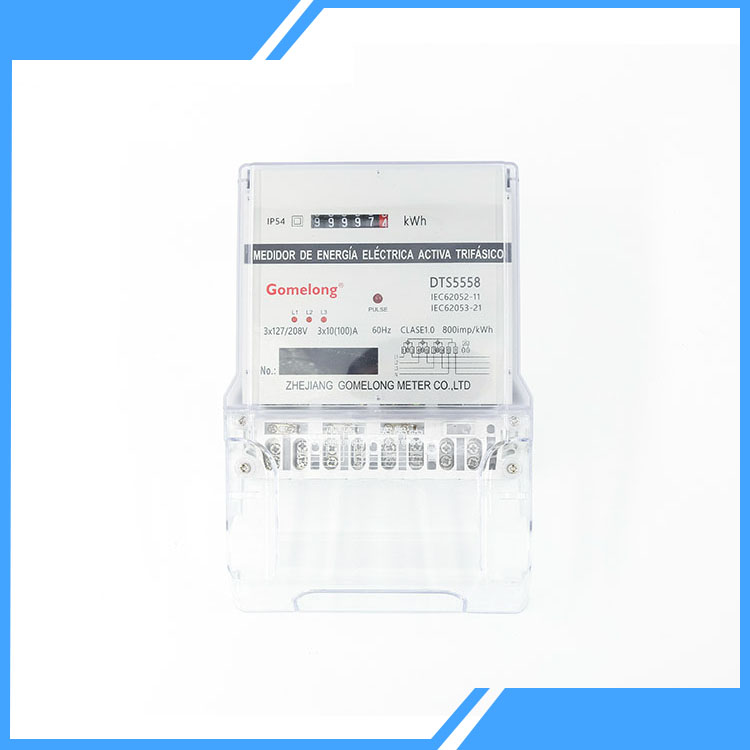

Three-Phase Digital Voltage Bidirectional Electric Meters details

Qucik Details of Three Phase Digital Voltage Bidirectional Electric Meters


Three Phase Digital Voltage Bidirectional Electric Meters (Model DTSD5558 three phase four wire electronic multifunction energy meter ) is a kind of new style three phase four wire multifunction energy meter.The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21 and class1 three phase reactive energy meter in international standard IEC 62053-23. Three Phase Digital Voltage Bidirectional Electric Meters can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, This meter has LCD monitors shows the active energy power consumption, and there are far infrared and RS485 communication module in it. Three phase digital voltage bidirectional meters has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.



Features of Three Phase Digital Voltage Bidirectional Electric Meters


♦ Measurement of Import/Export active energy, current energy balance, Instant voltage/current/power

♦ PLC, Rs485, Infrared interface

♦ Event record: Cover open detection, Reverse current, Fraud



Technical Parameters of Three Phase Digital Voltage Bidirectional Electric Meters



Specification

DTS5558L

DTS5558

Accuracy

Active

Class1.0

Class1.0

Reactive

Optional

Optional

Voltage

Rated

3x57.7/100V,3x220/380V

3x230/400V,3x240/415V

3x57.7/100V,3x220/380V

3x230/400V,3x240/415V

Range

0.9Un~1.1Un

0.9Un~1.1Un

Limit

0.8Un~1.2Un

0.8Un~1.2Un

Frequency



50/60Hz

50/60Hz

Current

Range

1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A

3x1.5(6), 3x 5(30), 3x 10(50),

3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A

Starting Current



0.4%Ib

0.4%Ib

Constant

Active

1600imp/kWh

1600imp/kWh

Reactive

\

\

Display

Type

LCD

Register

Digit

6+1

6+1

Power Consumption

Voltage Circuit

≤0.8W,10VA

≤0.8W,10VA

Current Circuit

≤4VA

≤4VA

Communication

Interface

Optical/Infrared/RS485 (Optional)

Optical/Infrared/RS485 (Optional)

Protocol

MODBUS,DLT/645,IEC1107

MODBUS,DLT/645,IEC1107

Temperature

Working Temperature

-45℃~+55℃

-45℃~+55℃

Storage Temperature

-40℃~+70℃

-40℃~+70℃

Humidity



≤90%

≤90%

Protection



IP54

IP54

Three-Phase Digital Voltage Bidirectional Electric Meters size
