3 Phase Remote Smart Watt Meter

Gomelong is a professional manufactures of 3 Phase remote smart watt meter. Our professional expertise in manufacturing 3 Phase remote smart watt meter has been honed over the past 10+ years. 3 Phase remote smart watt meter pulse display with 2 x LED display for pulse and reverse.3 Phase remote smart watt meter easy installation to distribution boards, load center, miniature and etc. by identifying where energy is being used.

Send Inquiry

Product Description

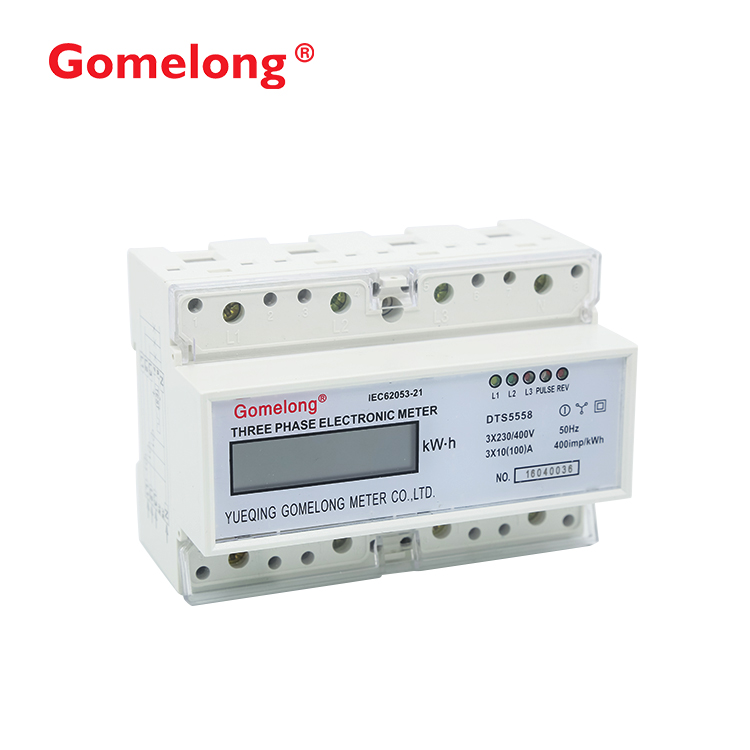

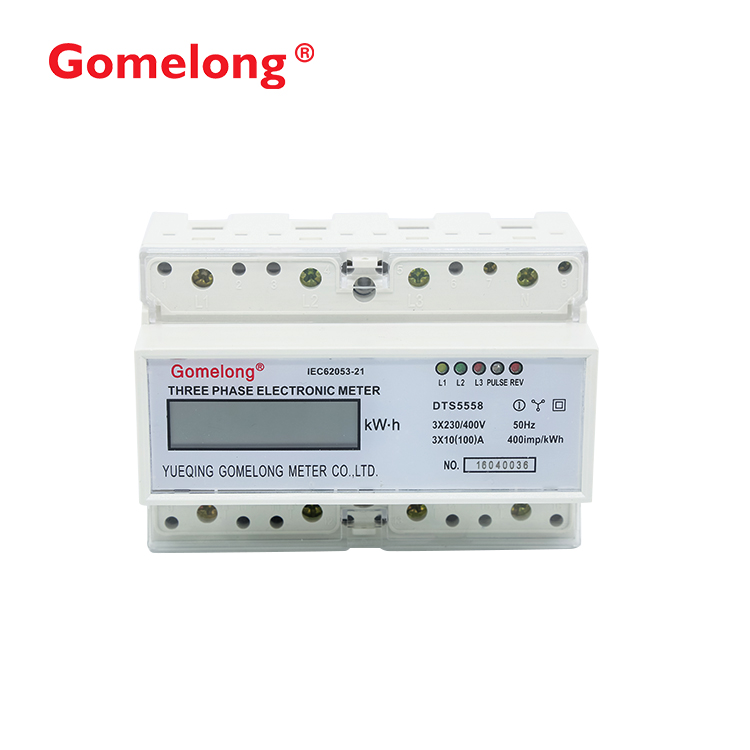

3 Phase Remote Smart Watt Meter

3 Phase Remote Smart Watt Meter applications

3 Phase Remote Smart Watt Meter functions

3 Phase Remote Smart Watt Meter


3 Phase Remote Smart Watt Meter



Application of 3 Phase Remote Smart Watt Meter



3 Phase remote smart watt meter is a kind of new style three phase four wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. 3 Phase remote smart watt meter completely accords with relevant technica requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. 3 Phase remote smart watt meter can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. Display total energy consumption by step and motor type impulse register.

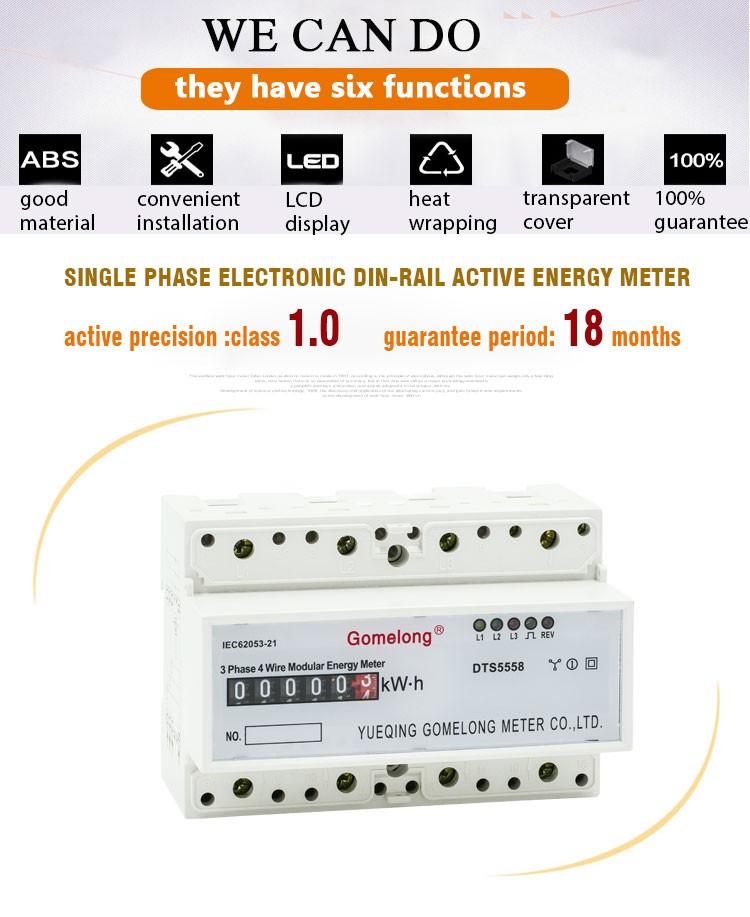

Features of 3 Phase Remote Smart Watt Meter



Phase loss with 3 x LED display for L1,L2,L3

Pulse display with 2 x LED display for pulse & reverse

Reverse direction display with LED

Small modular size, DIN rail mounted.

Easy installation to distribution boards, load center, miniature & etc. by identifying where energy is being used.


Technical Data of 3 Phase Remote Smart Watt Meter

Specification

DDS5558 7P

Accuracy

Active

Class1.0

Class1.0

Reactive

Optional

Optional

Voltage

Rated

3x57.7/100V,3x220/380V

3x57.7/100V,3x220/380V

3x230/400V,3x240/415V

3x230/400V,3x240/415V

Range

0.9Un~1.1Un

0.9Un~1.1Un

Limit

0.8Un~1.2Un

0.8Un~1.2Un

Frequency



50/60Hz

50/60Hz

Current

Range

3x1.5(6), 3x 5(30), 3x 10(50),

3x1.5(6), 3x 5(30), 3x 10(50),

3x 15(90), 3x 20(100), 3x 5(40),

3x 5(100)A

3x 15(90), 3x 20(100), 3x 5(40),

 3x 5(100)A

Starting Current



0.4%Ib

0.4%Ib

Constant

Active

1600imp/kWh

1600imp/kWh

Reactive

\

\

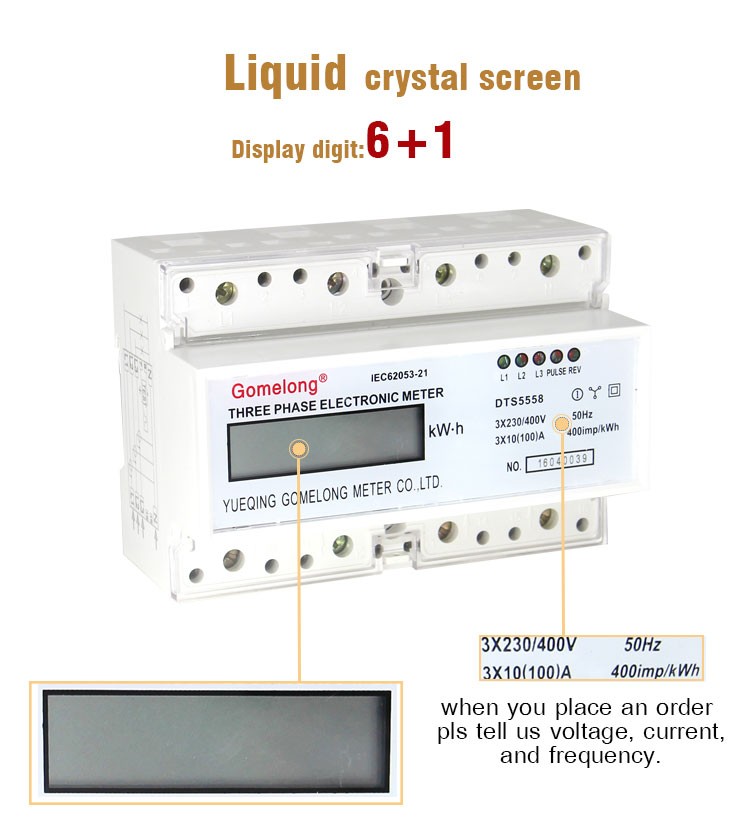

Display

Type

LCD

Register

Digit

6+1

6+1

Power Consumption

Voltage Circuit

≤0.8W,10VA

≤0.8W,10VA

Current Circuit

≤4VA

≤4VA

Communication

Interface

Optical/Infrared/RS485 (Optional)

Optical/Infrared/RS485 (Optional)

Protocol

MODBUS,DLT/645,IEC1107

MODBUS,DLT/645,IEC1107

Temperature

Working Temperature

-45℃~+55℃

-45℃~+55℃

Storage Temperature

-40℃~+70℃

-40℃~+70℃

Humidity



≤90%

≤90%

Protection



IP54

IP54
