Three Phase Multifunction Digital Power Meter

Gomelong is a professional manufactures of Three Phase Multifunction Digital Power Meter.Our professional expertise in manufacturing Three Phase Multifunction Digital Power Meter has been honed over the past 10+ years. Three Phase Multifunction Digital Power Meter is able to measure various electricity parameters with high accuracy, such as three phase voltage , three phase current, three phase combined voltaqet and three phase active power etc. They can measure the switching Value in four circuits (capable of telesignalization) and have the function of relay output in two circuits (capable of telesignalization).

Send Inquiry

Product Description

Three Phase Multifunction Digital Power Meter


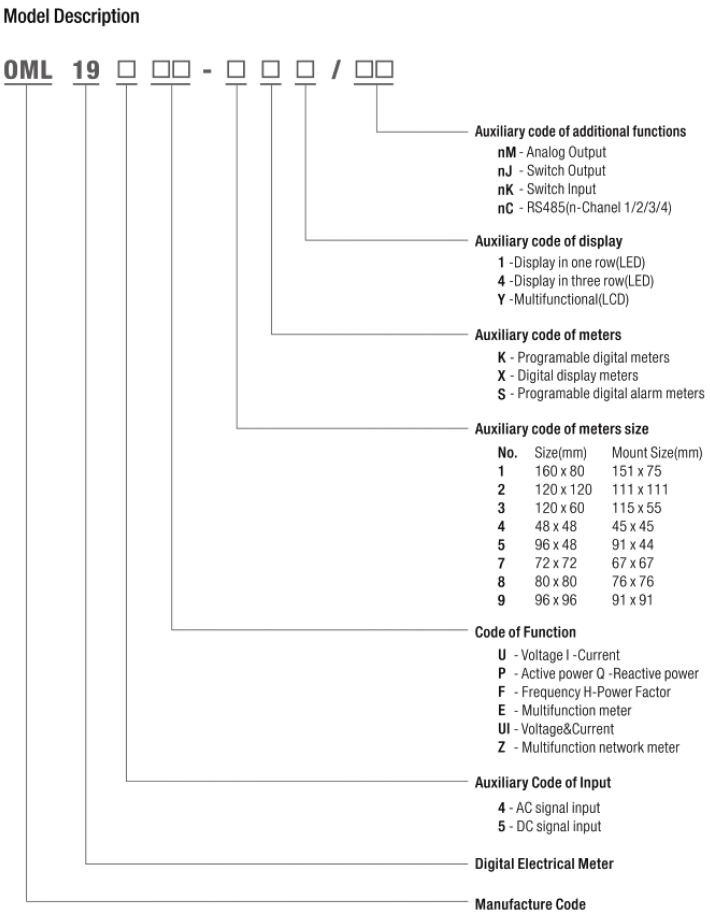

Application of Three Phase Multifunction Digital Power Meter



√Three phase multifunction digital power meter is used in power grid and automatic control system measuring various electrica parameters such as current, voltage frequencv, power factor, active power and reactive power etc. Based on the additional functions, we divide digital meters in four series: X, K, D, S



√Three phase multifunction digital power meter of series X measure and display electrical parameters such as current, voltage, power, frequency and power factor etc. It can display the parameters directly and accuracy. It is anti-vibration, of high accuracy and stability and able to measure effective AC value. It can also be used in serious harmonic distortion. Current ratio can be displayed by pressing the keys.



√Based on series X, three phase multifunction digital power meter of series K add three analog quantity transmitting output(4-20mA). Users car hoose to add RS485 communication interface output(Modbus-RTU protocol). Meters can digitally display in three rows as well as to be switched to display in single row.



√Series S of three phase multifunction digital power meter, programable alarm meters are designed for electricity systems and industrial mining enterprises demanding current control and detection. They are able to measure various electricity parameters with high accuracy, such as three phase voltage , three phase current, three phase combined voltaqe¤t and three phase active power etc. They can measure the switching Value in four circuits (capable of telesignalization) and have the function of relay output in two circuits (capable of telesignalization). Three phase multifunction digital power meter can also achieve telesignalization function by RS-485 port using Modbus-RTU Protocol. Parameters of transformer ratio can be set by pressing the keys on the meter panel















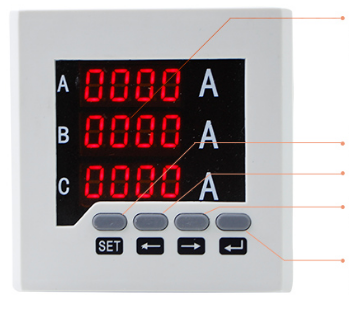

LED Display---Full-electric parameter measurement,0.5 Class,4 digits,Single Phase Frequency,Measuring   Range:45-65Hz









SET/OK Button: Confirm after digital settings

Back: back to prebious setting

Selection:Select from Right to Lift

Selection:Select from Left to Right / use to increase the value











Snap-in type
Easy installation
Easy maintaining

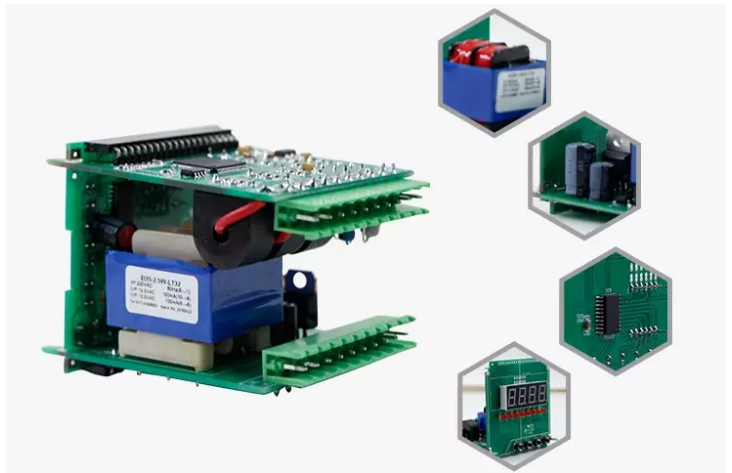

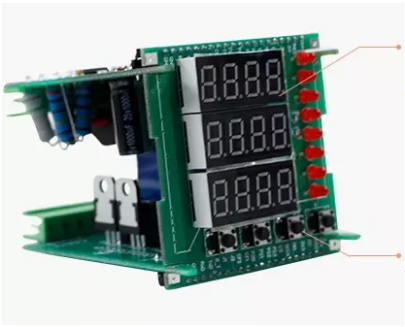

LED Display: Large scream with display quality and good brightness. Use high-cost IC chip as an important part.

























Programming button: Its keystrokes up to 100,000 times , using high-quality clips, in strict accordance with international certification standards.

Also can adjust the ratio parameters casually!



Panel is made up of import high molecular compound, pressed into the mold.It does not react with acid, alkali, high temerature and corrosionresista nee, good bright ness and has excelle nt flexibility, none-deforma-tion after bending.ect.

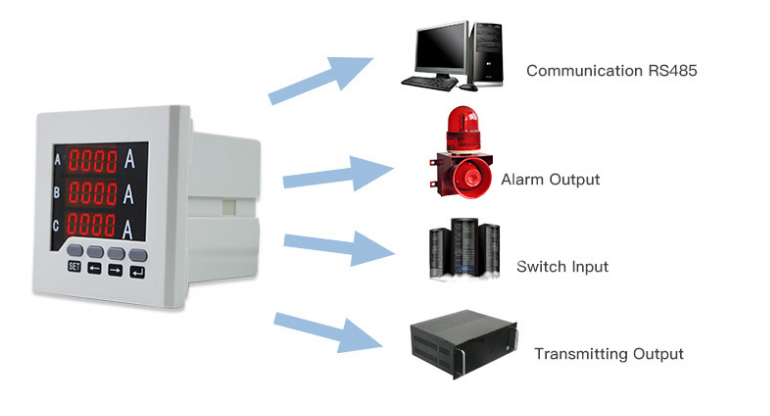

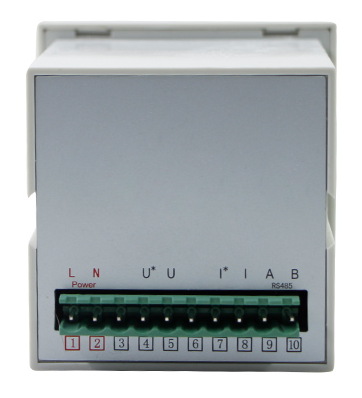

All our products can add additional functions, such as communication
RS485,alarm output,switch input,transmitting output and so on.



Overall dimensions and mounting holes size figures are for reference only.



Product Description of Three Phase Multifunction Digital Power Meter


Three phase multifunction digital power meter is designed according to power monitoring requirements of power systems, industrial and mining enterprises, public facilities, intelligent Building, etc. Three phase multifunction digital power meter can measure all common power parameters, such as three-phase voltage, current, active power, reactive power, frequency, power factor, four quadrant electricity, etc.


Main features of Three Phase Multifunction Digital Power Meter


Measure three-phase AC voltage or with high-precision.

Provide LED display and local data query.

Programmable voltage transformation ratio.

Support RS-485 communications and Modbus-RTU protocol.

Support switch input, switch output and analog output.


Technical Data of Three Phase Multifunction Digital Power Meter


Technical Feature

Parameters

Input

Wiring

3P3L, 3P4L

Voltage

Rating: AC 3x100V/120V/220V/240/380V

Overload: 480V (continuous); 1000V during 10s

Consumption: < 1VA

Current

Rating: AC 1A or 5A

Overload: 6A (continuous); 50A during 10s

Consumption: < 1VA

Frequency

45 ~ 65Hz

Precision

0.2%(U,I); 0.5% (F: 0.05Hz, kVarh: 1%)

Thermal drift

<200ppm

Transformation ratio

CT and PT ratio programmable

RS485 interface

3 cables RS485 (Modbus-RTU protocol)

Energy Impulse

2 impulse (open-collector) for kWh & kvarh

VCC<48V, Iz<50mA

Constant: 3600imp/kWh(/kvarh)

RealValue = ReadValue x PT x CT

Power supply

AC/DC 85 ~ 265V; Consumption < 5VA

Standard

IEC61036, IEC61010

Isolation

2kVAC/min ( input / output / power supply)

input / housing and output / housing >50MIN

Environment

Work Temperature: -20C ~ +55C

Storage Temperature: -20C ~ +70C

Relative humidity: 5% ~ 95% (no condensation)

Altitude: < 2500m
