Three Phase Voltage Meters

Gomelong is a professional manufactures of Three phase voltage meters. Our professional expertise in manufacturing Three phase voltage meters has been honed over the past 10+ years. Three phase voltage meters are used in power grid and automatic control system measuring various electrica parameters such as current, voltage frequencv, power factor, active power and reactive power etc. Based on the additional functions, we divide digital meters in four series: X, K, D, S.

Send Inquiry

Product Description

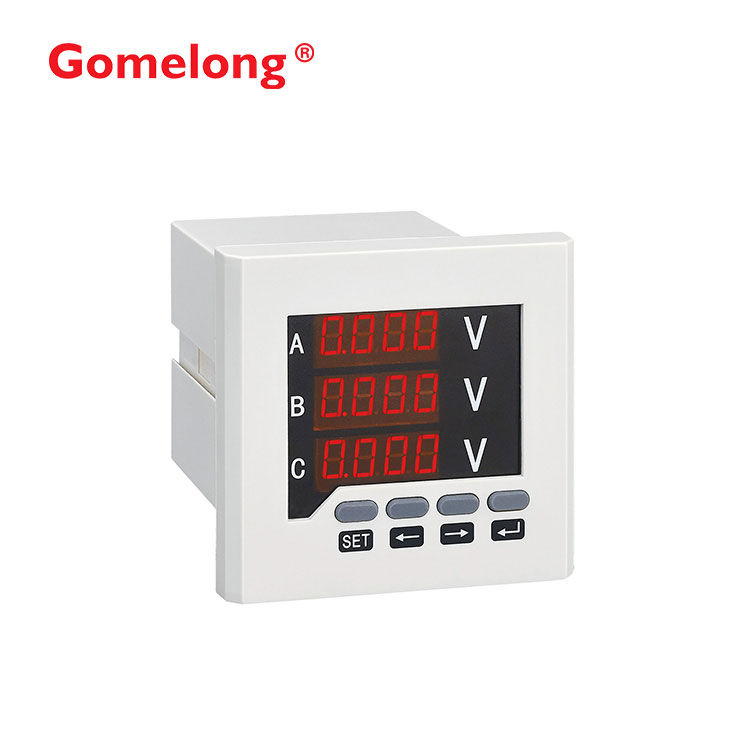

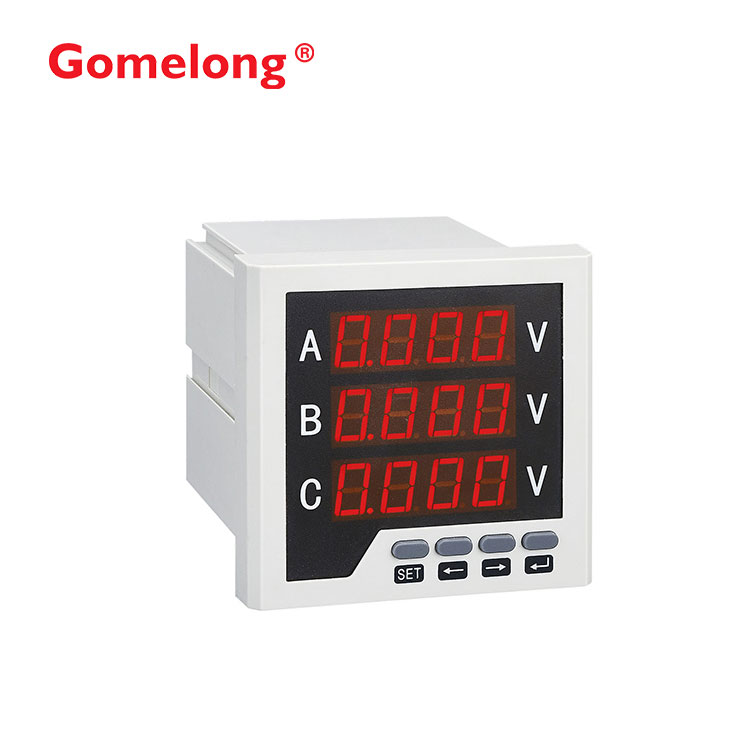

Three Phase Voltage Meters

Gomelong Three Phase Voltage Meters details


Application of Gomelong Three Phase Voltage Meters



√Gomelong three phase voltage meters are used in power grid and automatic control system measuring various electrica parameters such as current, voltage frequencv, power factor, active power and reactive power etc. Based on the additional functions, we divide digital meters in four series: X, K, D, S



Gomelong three phase voltage meters of series X measure and display electrical parameters such as current, voltage, power, frequency and power factor etc. They can display the parameters directly and accuracy. They are anti-vibration, of high accuracy and stability and able to measure effective AC value. Gomelong three phase voltage meters can also be used in serious harmonic distortion. Current ratio can be displayed by pressing the keys.



√Based on series X, Gomelong three phase voltage meters of series K add three analog quantity transmitting output(4-20mA). Users car hoose to add RS485 communication interface output(Modbus-RTU protocol). Meters can digitally display in three rows as well as to be switched to display in single row.



√Series S of Gomelong three phase voltage meters, programable alarm meters are designed for electricity systems and industrial mining enterprises demanding current control and detection. They are able to measure various electricity parameters with high accuracy, such as three phase voltage , three phase current, three phase combined voltaqe¤t and three phase active power etc. They can measure the switching Value in four circuits (capable of telesignalization) and have the function of relay output in two circuits (capable of telesignalization). They can measure the switching Value in four circuits (capable of telesignalization) ano have the function of relay output in two circuits (capable of telesignalization). They can also achieve telesignalization function by RS-485 port using Modbus-RTU Protocol. Parameters of transformer ratio can be set by pressing the keys on the meter panel can also achieve telesignalization function by RS-485 port using Modbus-RTU Protocol. Parameters of transformer ratio can be set by pressing the keys on the meter panel

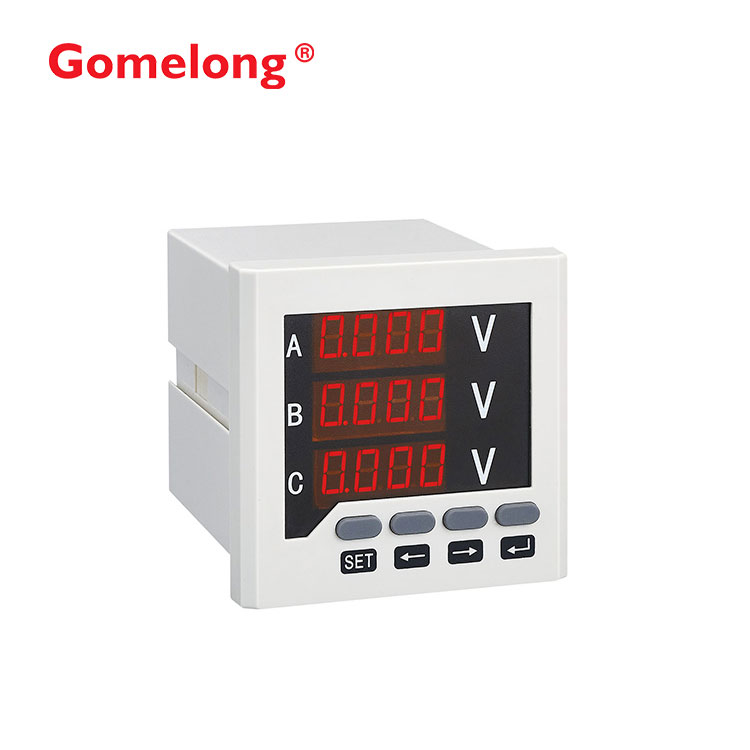

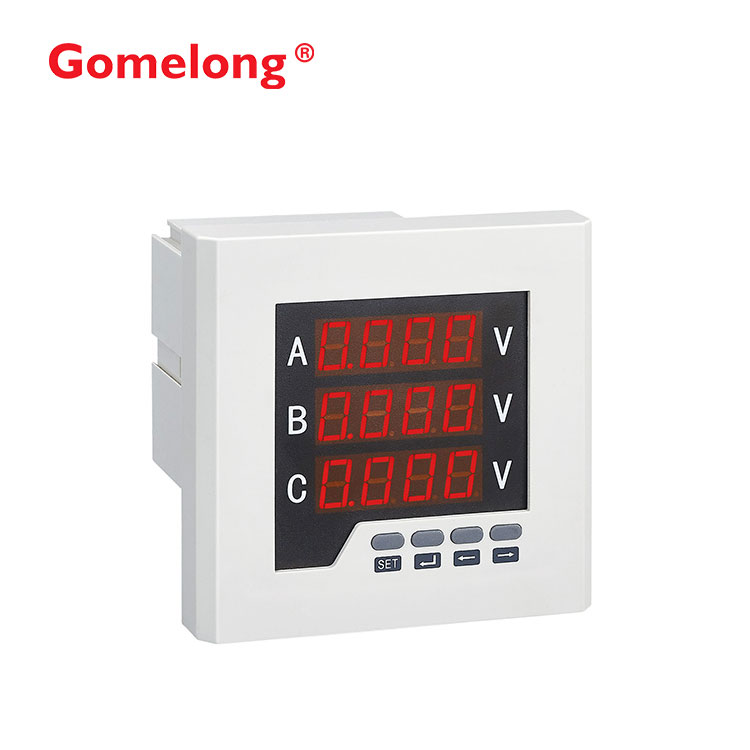

Gomelong Three Phase Voltage Meters

Gomelong Three Phase Voltage Meters











LED Display---Full-electric parameter measurement,0.5 Class,4 digits,Single Phase Frequency,Measuring   Range:45-65Hz









SET/OK Button: Confirm after digital settings

Back: back to prebious setting

Selection:Select from Right to Lift

Selection:Select from Left to Right / use to increase the value

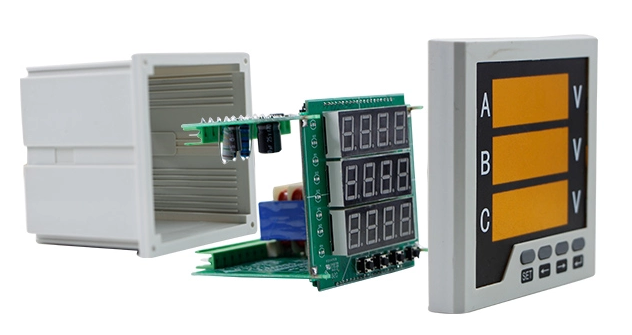

Snap-in type
Easy installation
Easy maintaining

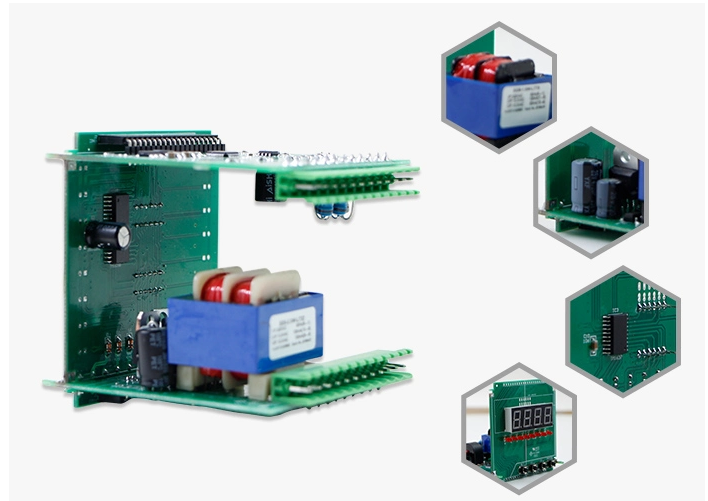

LED Display: Large scream with display quality and good brightness. Use high-cost IC chip as an important part.

























Programming button: Its keystrokes up to 100,000 times , using high-quality clips, in strict accordance with international certification standards.

Also can adjust the ratio parameters casually!



Panel is made up of import high molecular compound, pressed into the mold.It does not react with acid, alkali, high temerature and corrosionresista nee, good bright ness and has excelle nt flexibility, none-deforma-tion after bending.ect.

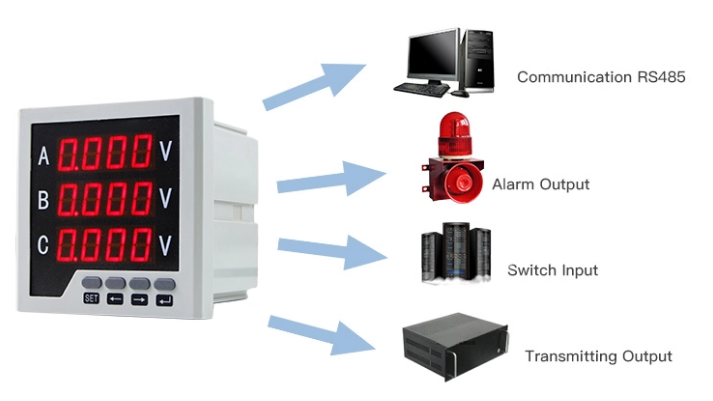

All our products can add additional functions, such as communication
RS485,alarm output,switch input,transmitting output and so on.

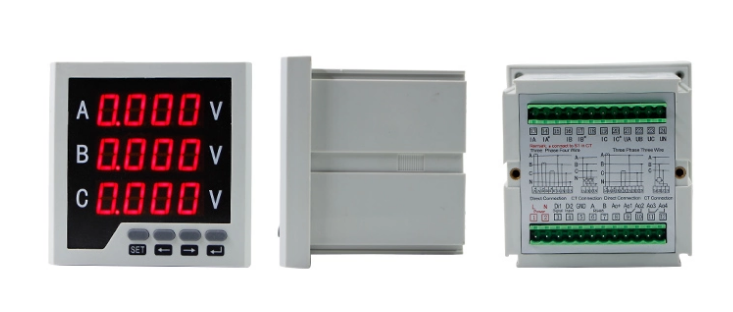

Overall dimensions and mounting holes size figures are for reference only.





Product Description of Gomelong Three Phase Voltage Meters


Gomelong three phase voltage meter measure Voltage in the power grid by AC sampling technique. The meters are programable and able to set the ratio by pressing the keys on the panel.With features of convenient installation.Easy wiring and maintenance,programable at site etc.
Gomelong three phase voltage meter can also proceed the network communication between different PLC and industrial control computers among the industry.


Technical Data of Gomelong Three Phase Voltage Meters

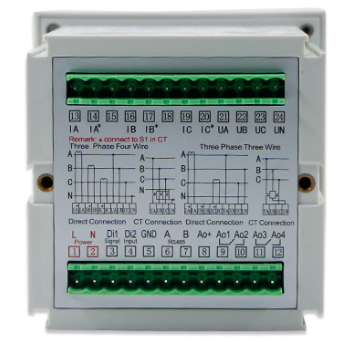

Wiring

Three phase

Rated current

AC5A

Rated voltage

0-500VAC or  0-100VDC

Overload

Permanent: 1.2 times; temporary: 2 times/10s

Accuracy

Class  0.5

Frequency

45-65 Hz

Operation range

AC400V

Working range

AC 80V~270V,AC 220V,AC 380V,AC 100V

Power consumption

≤ 5VA

Communication

RS-485, MODBUS-RTU protocol

Working temperature

-10~+55℃

Relative humidity

≤93 %,in the place without corrosive gas
